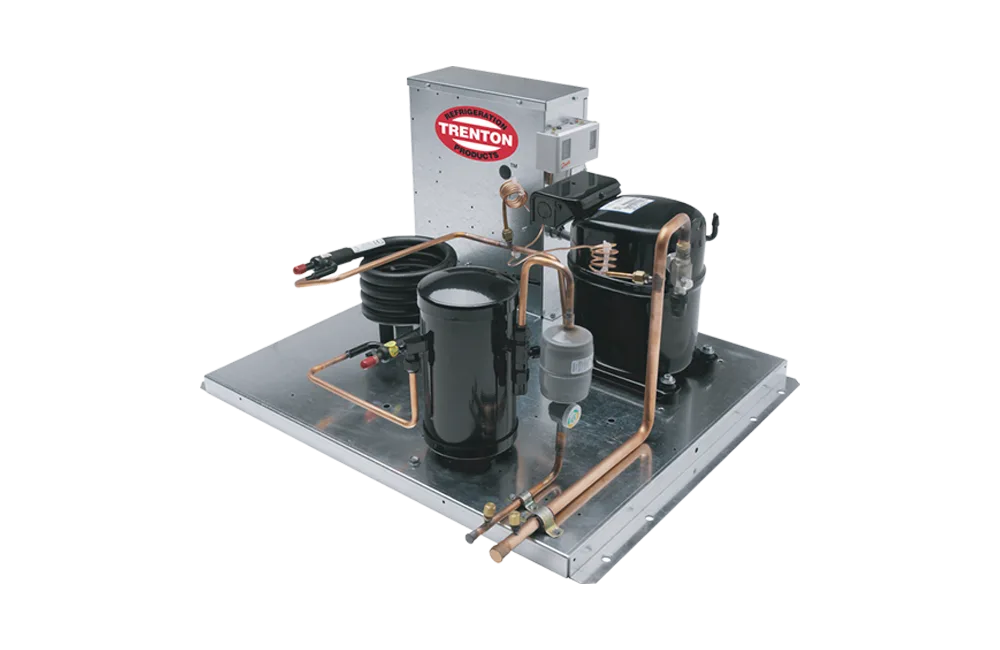

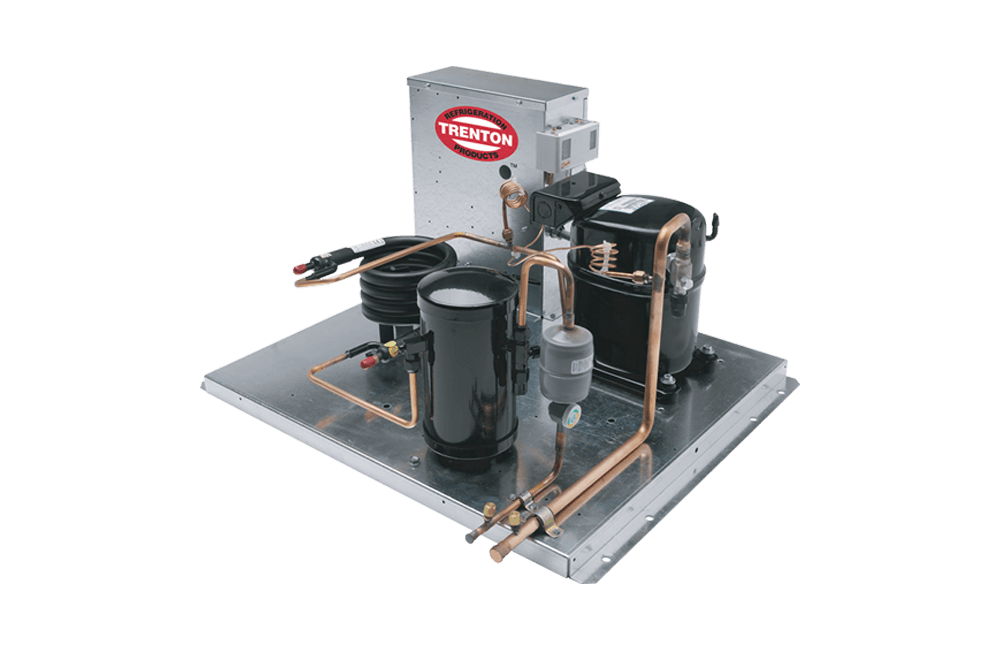

TX – Indoor Coaxial Water Cooled Condensing Units

Models range in capacity from 3/4 HP to 6 HP for high, medium and low temperature applications. Models feature Semi-Hermetic, Hermetic or Scroll compressors and are complete with many standard features all built into a spacious serviceable design.

Available Exclusively at United Refrigeration

Overview

Models range in capacity from 3/4 HP to 6 HP for high, medium and low temperature applications. Models feature Copeland Semi-Hermetic, Hermetic and Scroll compressors and are complete with many standard features all built into a spacious serviceable design.

Features/Options

Features

Painted weatherproof electrical control box with compressor contactor and fused control circuit
Pre-formed piping
Brass valves (TXH, TXZ)
Base valve on suction line (TXH)
Suction service valve (TXS, TXZ)
Copper tubing secured with cushion clamps
Semi-hermetics spring mounted with vibration absorber (TXS)
Hermetics/scrolls rubber mounted (TXH, TXZ)
Co-Axial condenser
Receiver with fusible plug and liquid shut off valve
Adjustable dual high / low pressure control with flex hoses
Each unit subjected to a thorough leak test with Helium leak-detectors
Units are shipped with Helium holding charge
Water reg valve (shipped loose)
Liquid injection (Low temperature scroll only) (TXZ)

Available Options

Suction accumulator
Suction accumulator with boil-out coil
Discharge line check valve
Oil separator
Oil separator c/w oil return filter & solenoid valve
Receiver inlet ball valve
Over-sized receiver
Sealed liquid line filter drier & sight glass
Ball valve – liquid line (shipped loose)
Insulated suction lines
Liquid line solenoid valve (with standard 230 volt coil) – shipped loose
Compressor circuit breaker
Defrost heater contactor c/w fuse block
Evaporator fan contactor c/w fuse block
Disconnect switch
Disconnect fusing
Pump down toggle switch
Lock out control circuit – Liquid solenoid valve with separate HP and LP controls
Time delay relay for compressor
Mechanical time clock
Electronic voltage/phase monitor
