TTL – Two-Way Low Profile Evaporators

Discontinued

TTL – Two-Way Low Profile Evaporators

Overview

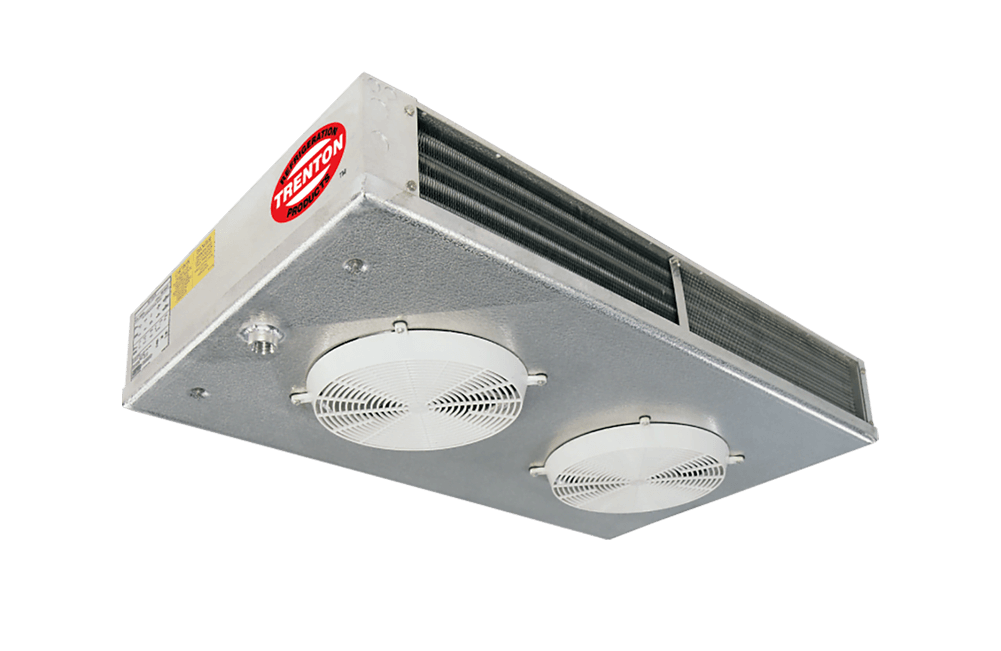

Reach-in and walk-in cooler flexibility is provided with this flush ceiling mounted unit cooler.

Designed with dual refrigeration coils and two-way air distribution, effectively reducing air velocities and minimizing product dehydration.

Features/Options
Features
  • Compatible with Low GWP Refrigerants
  • Low height compact size maximizes usable storage space
  • Dual refrigeration coils and two-way air distribution reduces air velocities to minimize product dehydration.
  • Air enters through fan and discharges two ways out of each coil side.
  • Rugged heavy duty motor mount reduces vibration and noise.
  • Electric defrost models include factory installed defrost termination and fan delay thermostat.
  • NSF approved “flush to ceiling mount”
  • Internally enhanced tubing
Available Options
  • Numerous options available, please contact factory
Certification
ULCUR / RUNSF
Specifications
Application
  • Medium & Low Temperature Applications
  • -20°F and Above Space or Room Temperature
  • R407A, R448A, R449A, R407C, R404A, R507, R22, R134a
Capacity
  • Medium Temp. models from 855 to 11,500 BTUH @10°F TD
  • Low Temp. models from 765 to 9,900 BTUH @10°F TD
Electrical
115/1/60200-220/1/50208-230/1/60

Support & Manuals

Product Manuals & Specifications
Product Data and Installation (Legacy Models)
General Product Specifications - TTL Two-Way Low Profile Evaporator
Defrost Kit and Fuse Package Selection Guide
