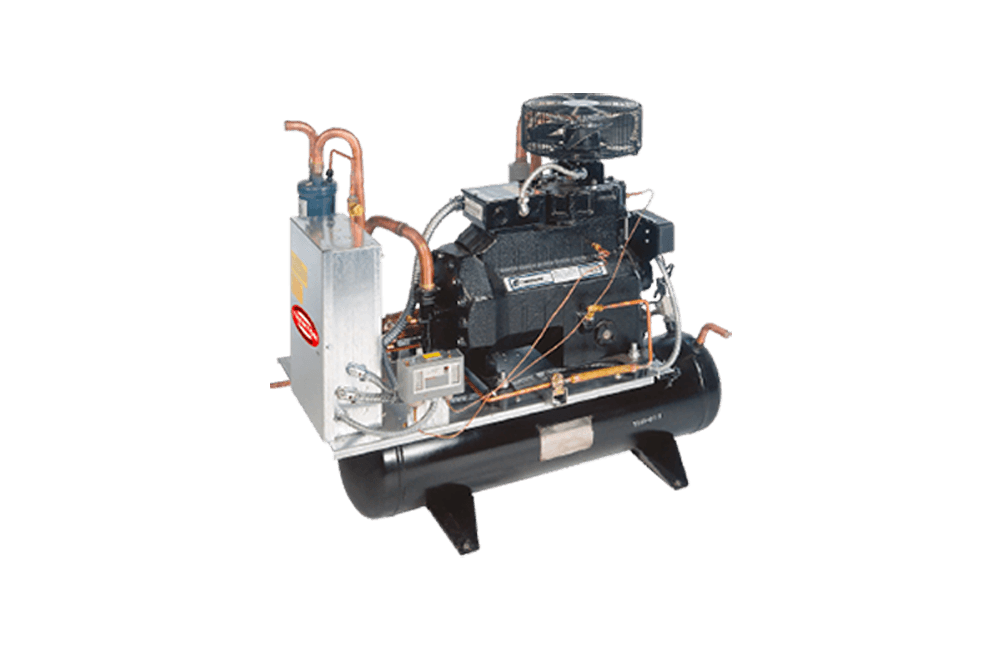

Designed for use with a remote air-cooled condenser, the TR-Line compressor unit for remote condenser is typically used for supermarket, large warehouse and applications where indoor space is at a premium. Consisting of high efficiency accessible semi-hermetic or scroll compressors, the TR-Line unit is available with options suited to your specific needs.
Certification:
Features:
- Compatible with Low GWP Refrigerants
- Spring mounted semi hermetic compressor with discharge and suction vibration eliminator or rubber mounted scroll compressors
- Electronic liquid injection on L8 units
- Copper tubing secured with Hydra-Zorb / Cush-A-Clamp
- Receiver with fusible plug or pressure relief valve and liquid shut off valve
- Flex hose on all controls
- Adjustable dual high / low pressure control
- CoreSenseTM on all applicable models
- Suction and discharge service valves
- Time delay relay for scroll compressor
- Unit leak tested and shipped with helium holding charge
- Hinged access panel electrical control box with compressor contactor and fused control circuit
Available Options:
- Suction accumulator with or without heat exchanger
- Sealed or replaceable core suction filter
- Oil separator c/w oil return solenoid valve
- Oversized receiver
- Receiver inlet valve
- Sealed or replaceable core liquid line filter drier
- Liquid line solenoid valve w/ 115 and 230 volt coils (shipped loose)
- Ball valve (shipped loose)
- Two valve adjustable flooded head pressure control
- Compressor circuit breaker
- Compressor time delay relay
- Pump down toggle switch
- Time clock – factory mounted and wired or shipped loose
- Defrost contactor with fuse block
- Evaporator fan contactor with fuse block
- Fused disconnect
- Phase / voltage monitor
- Compressor crankcase heater
- Compressor unloading
- Insulated suction lines
- Crankcase pressure regulating valve
- Additional options available, please consult factory
Application:
- High, medium and low temperature applications.
Capacity:
- Sizes range from ½ to 40 HP (semi-hermetic) and ¾ to 17 HP (scroll) for high, medium and low temperature applications
Electrical:
- 208-230/1/60
- 230/1/60
- 208-230/3/60
- 460/3/60
- 575/3/60
