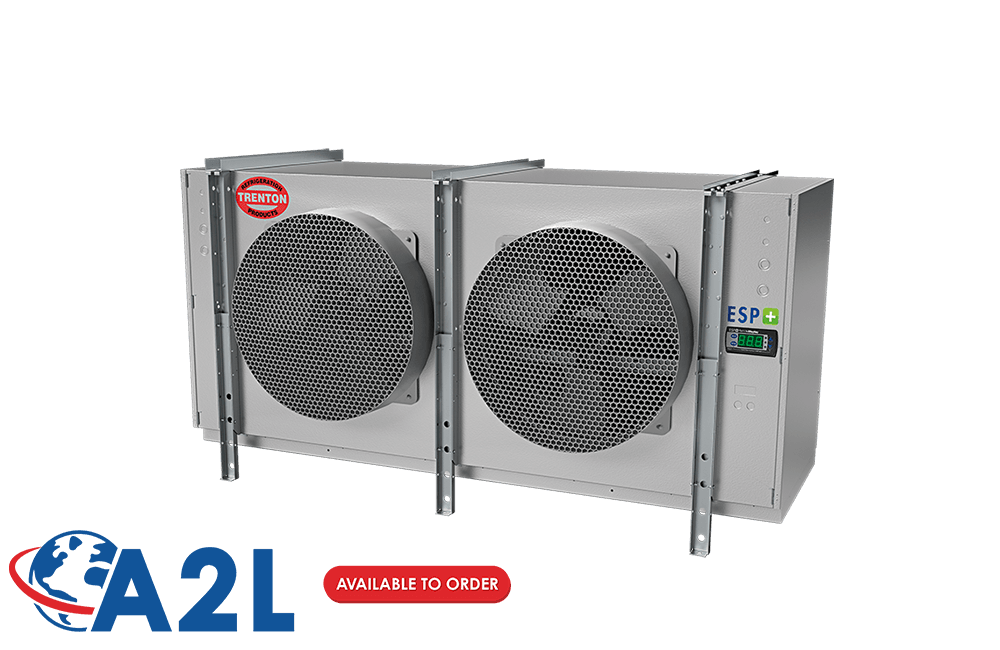

THP – High Profile Evaporators

The newly engineered THP series evaporators are ideally suited for warehouse/industrial cooler and freezer applications.

Available Exclusively at United Refrigeration

Overview

Ideally suited for large warehouse/industrial type applications.

Key Features:

New honeycomb fan guards help provide industry leading throw (175’/53m*) without Boosters
New fan blade design provides quieter operation (65 dBA**) without sacrificing performance
AWEF approved models available
Single fan and multi-fan configurations
Improved Energy Saving Defrost Control
Enhanced tubing for maximum efficiency
Reduced refrigerant charge
*Standard high efficiency fan guard in open space
**65 dBA at 10’ (3m), single fan model in open field test Gen D

We offer a complete lineup of products that meet or exceed the new DOE/NRCAN 2020 “AWEF” requirements. Use this guide which collects all of the AWEF numbers for DOE/NRCAN 2020 Compliant equipment.

Additionally, we offer models for applications which are DOE/NRCAN 2020 “AWEF” Exempt. See our Product Data and Installation for full details.

Have questions about AWEF, WICF, etc.? Visit our AWEF-FAQ

Available features and Technology

Video

Features/Options

Features

EC motors with patented SmartSpeed® Technology (Gen D & Gen E)
Compatible with Low GWP refrigerants (A1 & A2L)
Totally enclosed high efficiency EC motors (Gen D & Gen E)
High efficiency and high strength fan guard (Gen D & Gen E)
Hinged access panels
Internally enhanced tubing
Ample electrical and header compartments
Adjustable Fan Delay on medium temperature Electric Defrost units
Fixed fan delay on all low temperature units
Electronic defrost termination on all Electric and Hot Gas Defrost units
Liquid line solenoid valve wire harness factory installed
Schrader valve on suction header
Quiet swept wing fan blade
1-1/4″ NPT drain fitting
Unit shipped with Nitrogen holding charge
Factory installed distributor nozzle
CO₂ Coils certified for 650 PSI (45 Bar)
All A2L units will include Leak detection system with SSOV (Safety Shut Off Valve) and CSOV (Check Shut Off Valve) – Shipped Loose
All our A2L compatible “E-Generation” evaporators are “Dual Rated” and support both A1 and A2L refrigerants.

Available Options

ESP+ Intuitive Evaporator Control Technology
Factory installed expansion valve, solenoid valve and room thermostat
Hot gas loop pan with hot gas defrost models
Corrosion protection: alternate fin materials and coatings
Electronic expansion valve (EEV)
Transducer for EEV
Insulated drain pan
Wire fan guard
90 Bar (1300PSI) CO₂ models available, please contact factory
Totally enclosed motors (Gen B)
EC motors available with 2-speed, variable speed or provided less controls (by others) (Gen B)
Transducer Schrader and isolation valve
Additional options available, please contact factory

Certification

ULCNSFGen D and Gen E

Specifications

Application
