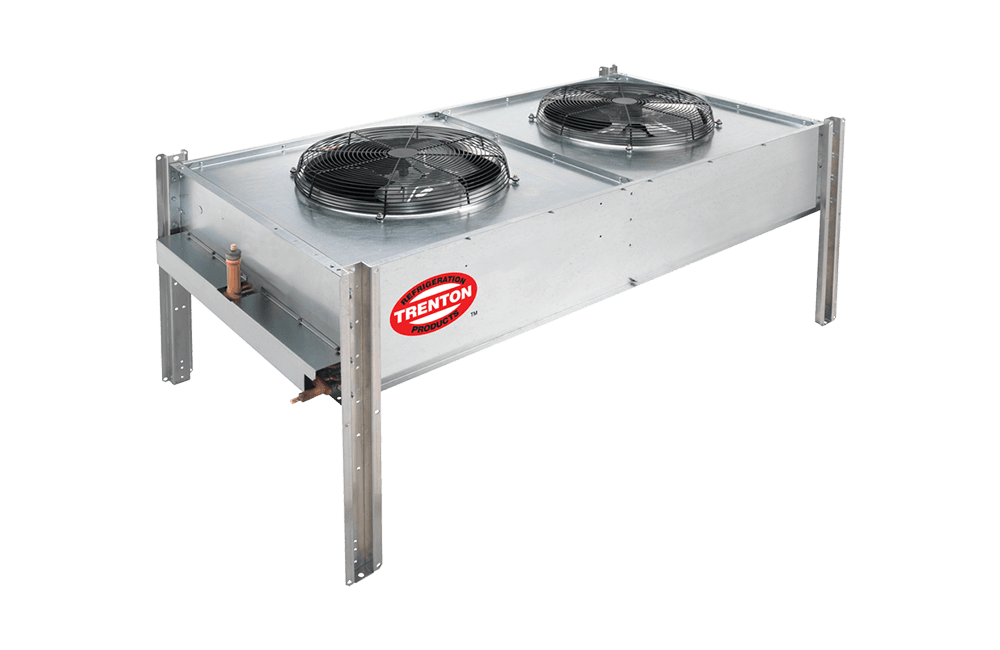

TFM – Medium Direct Drive Fluid Coolers

Direct drive fluid coolers use water or glycol for Process fluid cooling, remote radiators, secondary heat exchangers, and industrial water coolers. Available in a wide range of capacities.

Overview

Direct Drive Fluid Coolers for use with water or glycol/water mixtures as fluids for:

Process Fluid Cooling
Glycol and “Free Cooling” for Computer Room (Data Center) Cooling
Secondary Heat Exchangers
Secondary Fluid for Supermarket Systems
Remote Radiators for Diesel or Gas Engines
Fan Diameter 26 in 30° Pitch
Fan Motor Nom. ¾ HP @ 1,075 RPM

Features/Options

Features

Heavy-gauge galvanized steel cabinet construction
Energy efficient PSC and 3 phase fan motors with internal overload protection
Quiet “swept wing” fan blade for quiet operation and optimal efficiency
Heavy duty 24” legs
All fan sections individually baffled with clean-out panels.
Zinc plated huck bolts
Control circuit voltage – 230 V

Available Options

Optional features (Factory Mounted)

Fan Cycling – Ambient thermostat / fan row with contactors
Fan Cycling – Aquastat thermostat fan cycling control / outlet fluid temperature
Individual fan motor fusing
Non-fused disconnect
Horizontal air discharge configuration
Variable Speed EC Motor which provides optimum efficiency and sound levels
Extended leg kits (36” or 48”) with cross bracing for extra rigidity
Mounted flange sets
Optional fin materials
Optional coil coating
Voltages available for 60Hz or 50Hz

Certification

ULC

Specifications

Application

Water or glycol/water mixtures as fluids
Process Fluid Cooling
Glycol and “Free Cooling” for Computer Room (Data Center) Cooling
Secondary Heat Exchangers
Secondary Fluid for Supermarket Systems
Remote Radiators for Diesel or Gas Engines
Suitable for other process cooling applications beyond water & water/glycol mixtures (i.e.: Solest POE Oil, Transformer Oil, Hycool 20, etc.)

Capacity
