Overview

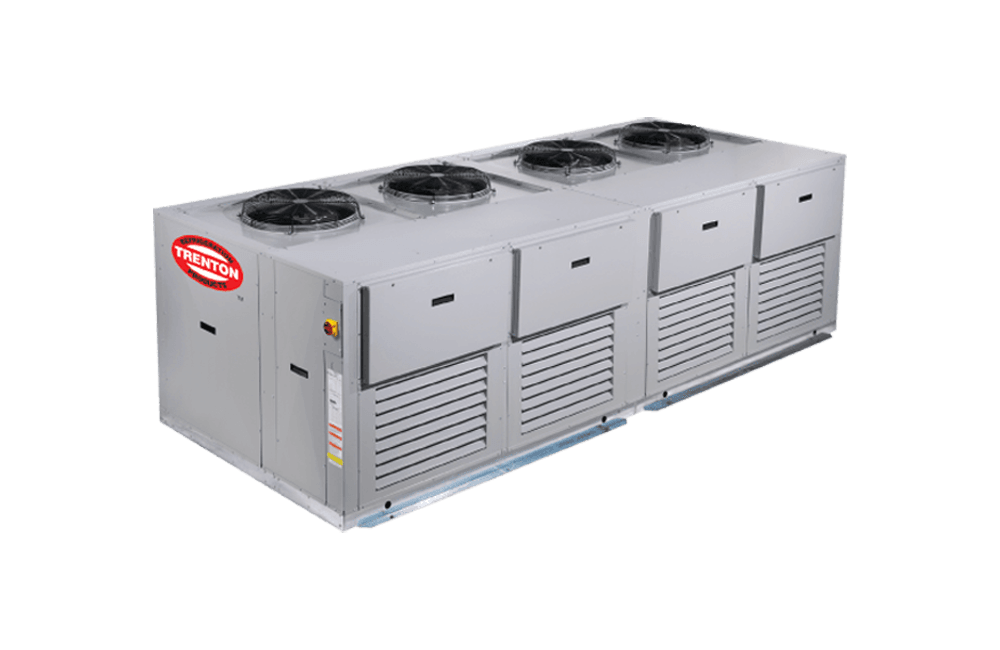

Total system flexibility using multiple compressor models and applications on a common chassis.
Features/Options
Certification:
Features:
- Total system flexibility using multiple compressor models and applications on a common chassis.
- Up to four fan section cabinet choices of either Hermetic, Scroll or Semi-Hermetic multiple compressors, with maximum three compressors per fan section.
- Small Cabinet: Compressor sizes available ranging from 1/2 through 6 HP to a maximum total of 6 HP per Fan section and 24 HP per unit. (Based on 95°F design Ambient)
- Medium Cabinet: Compressor sizes available ranging from 1/2 through 8-10* HP to a maximum total of 8 HP per fan section and 40* HP per unit. (Based on 95°F design Ambient)
- Semi-hermetic use suction and discharge vibration eliminators and spring mounts.
- High efficiency enhanced tube and fin on both indoor or outdoor condenser design using high efficiency PSC fan motors
- Outdoor unit uses weather-resistant housing with hinged hood, weatherproof electrical panel and fixed head pressure flooding valve
- Each compressor includes main power fuse block, contactor, fixed high and low pressure control oil pressure control (where applicable) and fused control circuit
- Compressor circuit breaker (per compressor)
- Single Point Main electrical panel with non- fused disconnect. (Single point dependant on evaporator voltage)
- ** Depends on application and compressor type
Available Options:
- Sealed Suction Filter
- Suction accumulator
- Discharge line check valve
- Receiver Inlet ball valve
- Heated and insulated receiver
- Field piping connections at left or right side
- Flex hoses for pressure controls
- Voltage /Phase monitor
- Main disconnect fusing
- Compressor anti short cycle time delay relay
- Current sensing relay -for use with Oil control (where applicable)
- Sentronic oil pressure control (where applicable)
- OMB oil level Control (where applicable)
- Air or Electric Defrost Kits
- Pumpdown toggle switch
- Liquid Line solenoid valve-with standard 230V coil (shipped loose)
- Spare condenser circuit for remote ice machine
- ** for semi-hermetic compressors – maximum one suction accumulator per fan section
Specifications
Application:
- Outdoor Multiple Compressor Air Cooled Condensing Units
- 1/2 to 10 HP Compressors
- Hermetic, Scroll & Semi-Hermetic Compressor (max. 40HP total)
Capacity:
- 1/2 to 10 HP Hermetic, Scroll & Semi-Hermetic Compressor (max. 40 HP Total)
Electrical:
- 230/1/60
- 208-230/3/60
- 460/3/60
- 575/3/60
- 220/1/50
- 200-220/3/50
- 380-400/3/50
