TDX

CONTACT A PRODUCT SPECIALIST TODAY:

[email protected]
1-844-893-3222 ext. 527

Overview

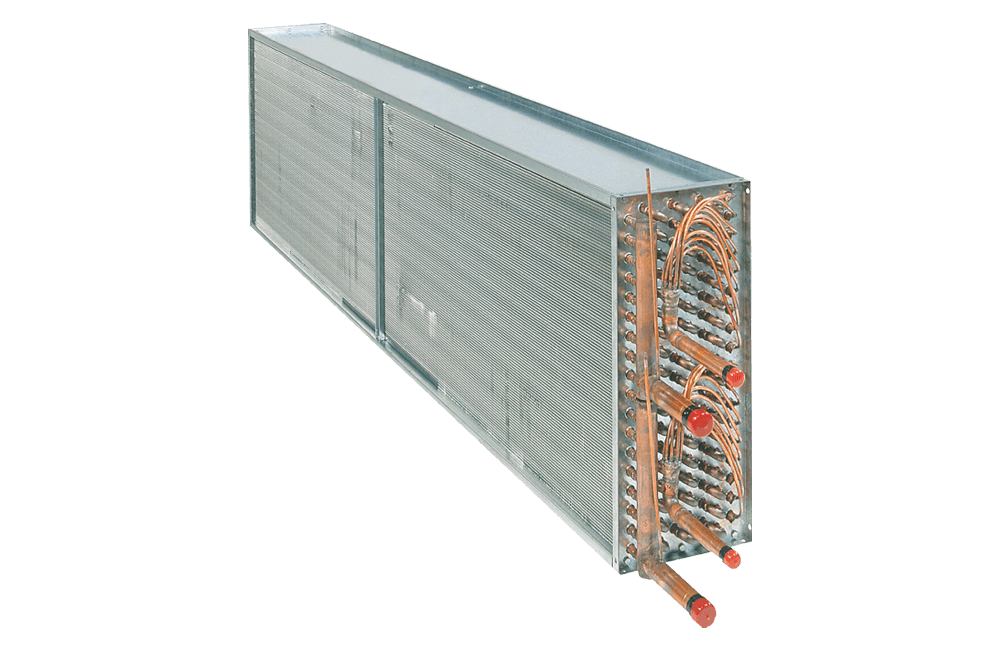

Direct expansion coils are engineered and designed to deliver the maximum possible heat transfer efficiency under all operating conditions.Using only the highest quality materials and the most modern manufacturing techniques available, each coil is inspected and tested under rigid quality control standards. Staggered copper tube design offers intimate and prolonged air contact while corrugated fins construction allows rippled air flow patterns throughout the coil creating turbulent conditions for maximum, highly efficient heat transfer.
Features/Options

Certification:
Features:
  • 7, 8, 10 or 12 fins per inch spacing
  • From 2 through 10 rows deep
  • From 6″ through 120″ nominal tube length
  • From 6″ through 36″ high face (1-1/2″ increments)
  • Available for R404A, R-22, R134a and R407C.
  • Other sizes available
Options:
  • 7, 8, 10 or 12 fins per inch spacing
  • From 2 through 10 rows deep
  • From 6″ through 120″ nominal tube length
  • From 6″ through 36″ high face (1-1/2″ increments)
  • Available for R404A, R-22, R134a and R407C.
  • Other sizes available

Specifications

Application:
  • Cooling and Dehumidifying
  • R404A, R-22, R134a and R407C
