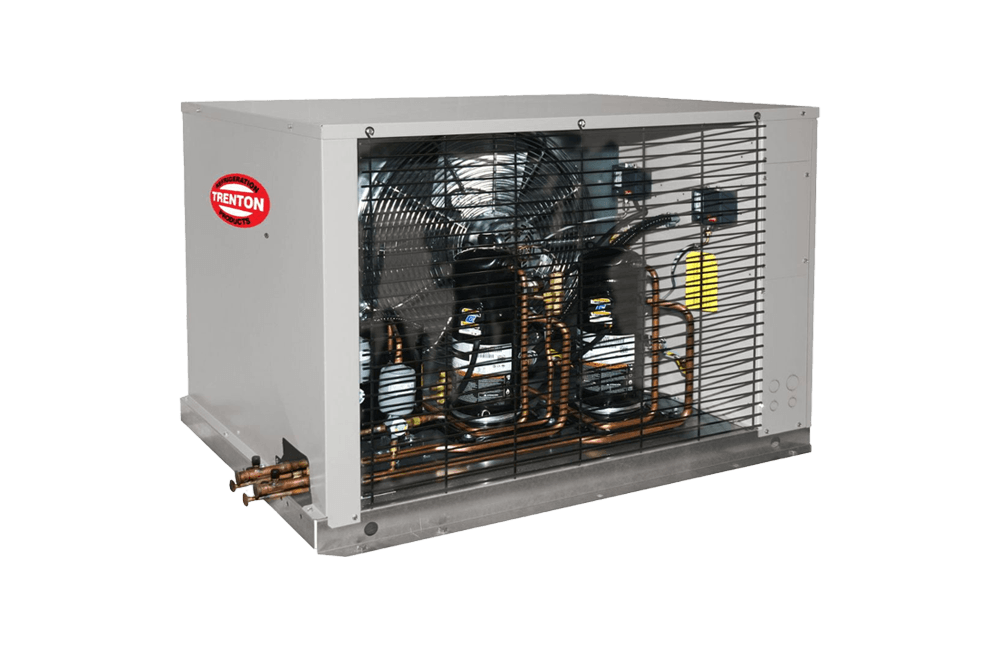

TC Combination Condensing Units

One unit for both cooler and freezer boxes, saving space, installation time and shipping cost.

Overview

One unit for both cooler and freezer boxes, saving space, installation time and shipping cost.
Copeland scroll or hermetic compressors
Oversized condenser surface
Oversized receiver
Oversized electrical control panel
Single point electrical hook up

Units are available with Copeland compressors and include many sought-after standard features, giving you the quality you expect and a long list of options you demand.

Available features and Technology

Features/Options

Features

Indoor Unit:

One unit for both cooler and freezer boxes, saving space, installation time and shipping cost.
Oversized condenser surface
Oversized receiver
Oversized electrical control panel
Single point electrical hook up
Fan guard protection
Compatible with Low GWP Refrigerants
Weatherproof electrical control box with compressor contactor and fused control circuit
High efficiency enhanced tube and fin condenser design
Energy efficient PSC condenser fan motor
Receiver with fusible plug and liquid shut off valve
Suction service valve
Pre-formed copper tubing
Liquid injection (low temp. models) for scroll compressors
Unit leak tested and shipped with helium holding charge
Fixed high pressure switch and adjustable low pressure control
Receiver inlet valve on 2-fan units models only
Discharge thermostat on applicable models only
Painted cabinet
Anti-Short Cycling Time Delay

Outdoor Unit: All Standard Features of Indoor Unit, Plus:

Painted weather-resistant housing with removable hood
Flooded head pressure control (non adjustable) 150 PSIG for optimal efficiency for scroll compressors
Crankcase heater and headmaster valves
Fan cycling control with flex hose (2 fan units)

On Medium Temp. Circuit:
