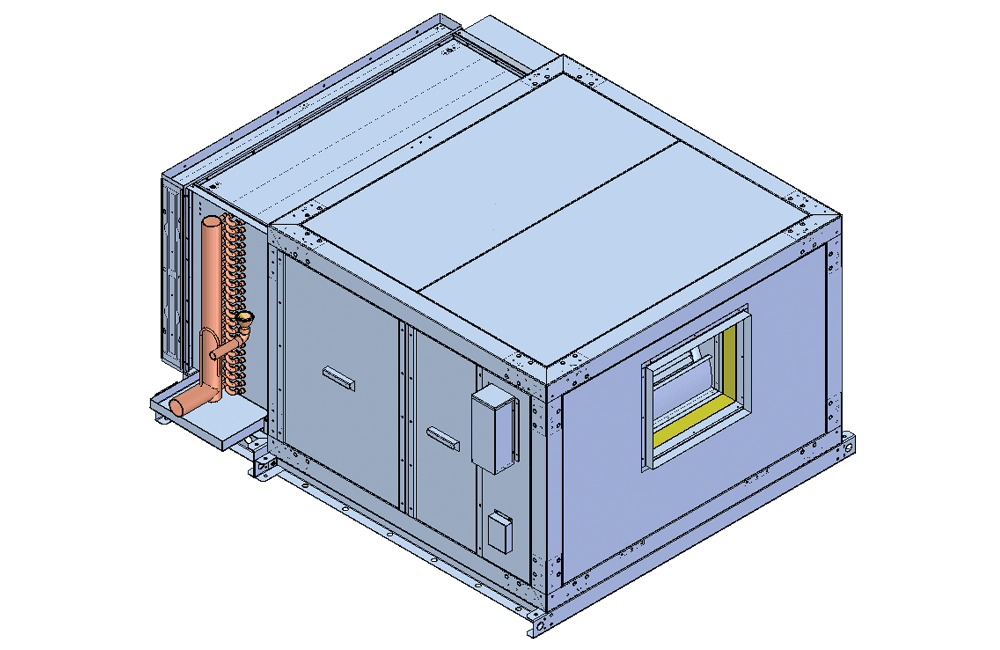

TAP – Horizontal Product Coolers

CONTACT A PRODUCT SPECIALIST TODAY:

ahu@t-rp.com
1-844-893-3222 ext. 527

Overview
Completely Redesigned.Air Defrost for Applications 35°F (1.6 °C) (Electric and Hot Gas Defrost Models Optional). Up to 30 Tons Nominal Capacity.
Features/Options

Certification:
Features:
  • Indoor Applications Only
  • Large Face Area Centrifugal Fan
  • “Bolt-On” Coil for Maximum Capacity in Minimum Space
  • Single Wall Heavy Gauge Galvanized Cabinet
  • Full Size Access Doors for Easy Maintenance
  • Efficient Forward Curved Blower
  • 10 Models
  • Up to 6” Total Static Pressure
  • Up to 44,000 CFM
  • Internal Motor
  • Up to 30 HP
  • Horizontal and Vertical Air Discharge
  • External Electrical Box Mounted to Cabinet
  • Extended Grease Lines with External Access
Available Options:
  • Double Wall Cabinet with 2” Mineral Wool Insulation
  • Internal Vibration Isolators
  • Airfoil (Up to 8” Total Static Pressure)
  • Disconnect Switch
  • Flat Filter
  • Angle Filters

Specifications

Application:
  • Air Defrost for Applications 35°F (1.6 °C) (Electric and Hot Gas Defrost Models Optional).
Capacity:
  • Up to 30 Tons Nominal Capacity.
Electrical:
  • 115/1/60
  • 208-230/1/60
  • 208-230/3/60
  • 460/3/60
  • 575/3/60
