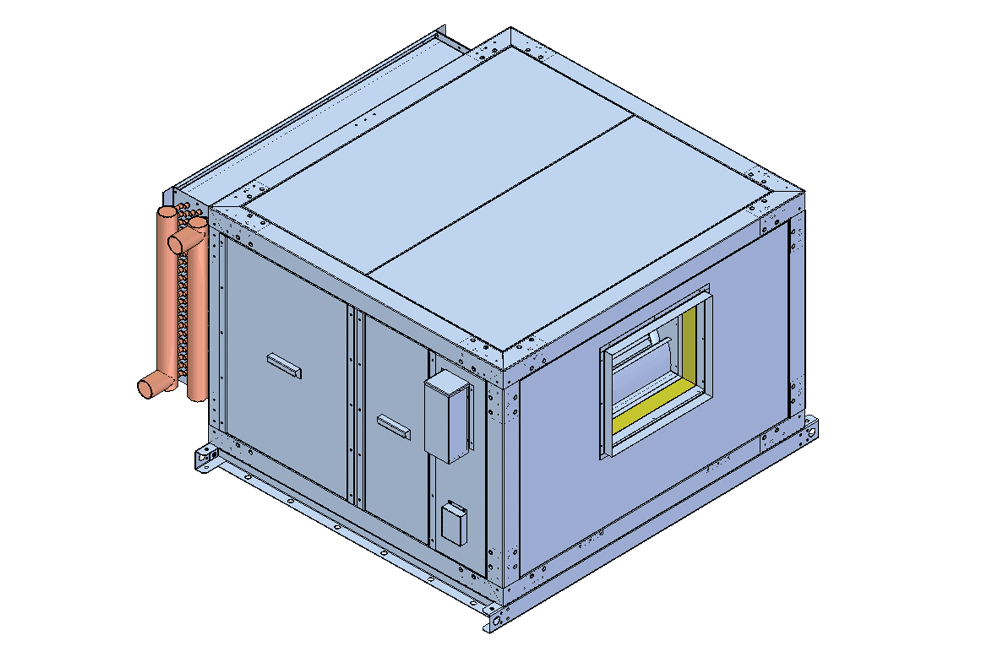

TAB – Centrifugal Fan Air Cooled Condensers

An alternative to roof mounted propeller fan type units and an ideal choice for indoor mounted and ducted applications.

Manuals & Info

Product Manuals & Specifications
Product Manual - (AWEF-exempt)
*Please contact your local sales representative*
All Product Guide - English
All Product Guide - Español
Air Handlers Sell Sheet - English
Search for TAB Parts In The Service Parts Database
Overview

New updated design!

Features/Options
Features
  • Indoor Applications Only
  • Large Face Area Centrifugal Fan
  • “Bolt-On” Coil for Maximum Capacity in Minimum Space
  • Single Wall Heavy Gauge Galvanized Cabinet
  • Full Size Access Doors for Easy Maintenance
  • Efficient Forward Curved Blower
  • 14 Models
  • Up to 6” Total Static Pressure
  • Up to 55,000 CFM
  • Internally Mounted Motor Design
  • Up to 50 HP
  • Horizontal and Vertical Air Discharge
  • External Electrical Box Mounted to Cabinet
  • Extended Grease Lines with External Access
Available Options
  • Double Wall Cabinet with 2” Mineral Wool Insulation
  • Internal Vibration Isolators
  • Airfoil (Up to 8” Total Static Pressure)
  • Disconnect Switch
  • Flat Filter
  • Angle Filters section not available
Certification
ULC
Specifications
Application
  • Centrifugal Air Cooled Condenser and Heat Reclaim
  • For use with a wide variety of popular refrigerants (including Low GWP)
Electrical
115/1/60208-230/1/60208-230/3/60460/3/60575/3/60
