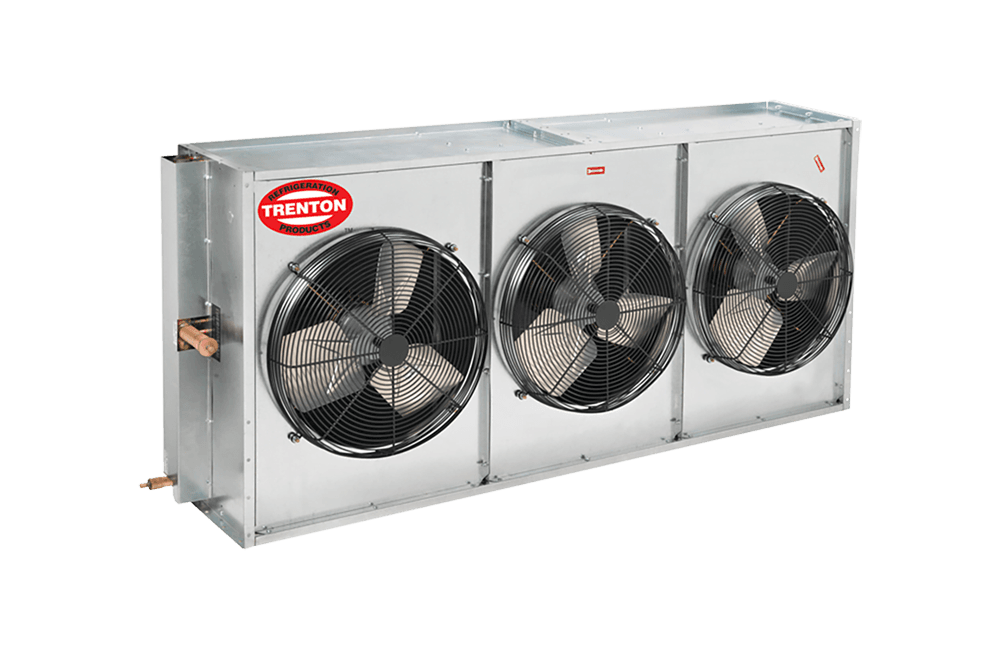

TCM – Medium Air Cooled Condensers

Certification:

Features:

• Compatible with Low GWP Refrigerants
• Horizontal or Vertical Air Discharge
• Heavy Gauge Galvanized Steel Cabinet
• ThermoSpanTM Coil Design eliminates tube failures on tube sheet
• Internally Enhanced Tubing with Enhanced Fin optimizes coil performance
• Energy Efficient PSC and 3 Phase Fan Motors with Internal Overload Protection
• Quiet ‘Swept Wing’ Fan Blade
• Fan Sections Individually Baffled with Clean-out Panels
• Zinc Plated Huck Bolts for rigid construction
• Heavy Duty 24” Legs
• Double fan wide models have Two Equal Circuits
• Control Circuit Voltage – 230 V
• Unit shipped with Nitrogen Holding Charge

Available Options:

Optional features (Factory Mounted)

• Multiple Refrigeration Circuits
• Variable Speed EC Motor which provides optimum efficiency and sound levels
• Ambient or Pressure Fan Cycling Control with Contactor
• Variable speed motor with controller for header fan motors
• Individual Fan Motor Fusing
• Non-Fused Disconnect
• Receiver with or without Heater and Insulation (base frame is required to factory mount receiver)
• Adjustable Flooded Head Pressure Control (factory mounted if ordered with receiver option)
• Extended Leg Kits (36″ or 48”) with Cross Bracing for Extra Rigidity
• Horizontal Configuration
• Optional fin materials
• Optional coil coating

Application:

• Refrigeration or Air Conditioning Duty
• 1 to 8 Fan Models
• Vertical or Horizontal Air Discharge
• For use with a wide variety of popular refrigerants (including Low GWP)

Capacity:

• Sizes range from 9 to 95 Nominal Tons (based on 25°F TD, R404A)

Electrical:

• 208-230/1/60
• 208-230/3/60
• 460/3/60
• 575/3/60
• 200-220/1/50
• 200-220/3/50
• 380/3/50
